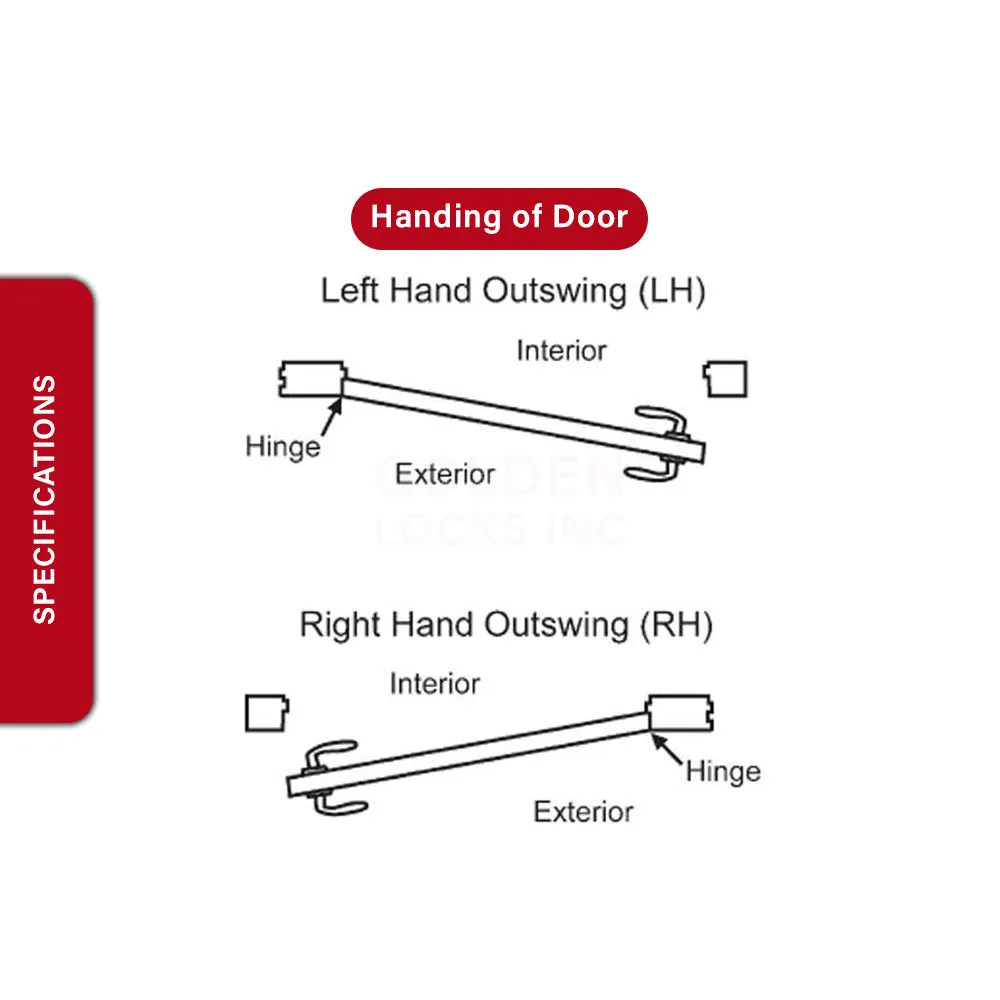

• F42-R Satin Nickle Hoppe Left Hand Set Hinge
• Steel guide hinges with non-removable pin
• Steel reinforcements make this new hinge the ultimate with door systems
• Designed to carry up to 165lbs. per door.
• Corrosion Resistant
• Specially coated components for improved durability and strength
• There are two types of adjustable hinges for each door panel
• A. Set Hinge: One per panel. This has a vertical adjustment of 3mm
• B. Guide Hinge: Minimum of two per panel. These hinges only have the horizontal adjustment of 2mm
• When the vertical adjustment is turned clockwise, the non-adjustable leaf will move in the direction of the arrow. The vertical adjustment has 32 turns from it's extremes, and the horizontal has 7 turns. Adjust the horizontal by turning clockwise to increase the margins. Turn counterclockwise to decrease the margins
• 850-2972410
